EAA Issuance with OpenID4VCI

Basic Idea

The EAA Provider issues signed credentials to the Wallet which are stored for a longer period. The Wallet can then present the credentials (including a proof of possession by signing over a wallet-held key) to the Relying Party.

The flows include examples for the credential formats SD-JWT VC and mdoc, but other formats are not precluded.

Exemplary Flows

The flows described in this document are examples demonstrating one possible implementation approach. Applicable industry standards for their implementation are:
TS 119 472-1: General requirements for electronic attestations of attributes.
TS 119 472-3: Issuance requirements and signature formats.

Terminology

In the context of eIDAS, the following terminology applies:

• Wallet Instance Attestation (WIA), corresponding to Wallet Attestation (WA) in OID4VC terminology.
• Key Attestation (KA).

Unless explicitly stated otherwise, this document uses the eIDAS terminology throughout the following flows.

• Wallett Instance Attestion (WIA) and Key Attetation (KA) are different types of the Wallet Unit Attestation (WUA). TS3 provides more details.

Profile

The issuance of an Electronic Attestation of Attributes (EAA) is governed by the ETSI TS 119 472-3 specification. This standard mandates the use of the OID4VC High Assurance Interoperability Profile (OID4VC-HAIP) as the underlying protocol profile.

Cryptographic Formats

Long-Term keys:

• EAA Provider has long-term key pair $(ep\_pub, ep\_priv)$ which is used to sign the credential
• EUDI Wallet generates device key $(device\_pub, device\_priv)$ which is used to generate proof of possession of a credential

Transaction-specific keys:

• EUDI Wallet generates key pair $(cre\_eph\_pub, cre\_eph\_priv)$ which is used to encrypt the credential response

Artifacts:

• EUDI Wallet fetches a Wallet Instance Attestation (WIA) from Wallet Provider: $wallet\_instance\_attestation$
• EUDI Wallet fetches a Key Attestation (KA) from Wallet Provider: $key\_attestation$
• Credential format specific payload signed by the issuer: $hashed\_attestation\_data$
• EAA Provider issues
  • SD-JWT VC (plus Disclosures): $sd\_jwt := \text{sign}(\mathit{hashed\_attestation\_data}, device\_pub)_{ep\_priv}$
  • ISO mdoc: $mdoc := \text{sign}(\mathit{hashed\_attestation\_data}, device\_pub)_{ep\_priv}$

Remote Issuance with Authorization Code Flow

Sequence Diagram

User Journey: EAA Issuance - Authorization Code

Step-by-Step Description

No	Description
001	(Wallet initiated) The user opens and unlocks their wallet.
002	(Wallet initiated) The user navigates to a credential catalog of pre-configured EAA Providers and is offered credentials in the Wallet. They selects an EAA and the Wallet continues the flow with the pre-configured Credential Issuer URL and credential identifier.
003	(Issuer initiated) User browses to the EAA Provider's website.
004	(Issuer initiated) Browser app on the user's device opens the EAA Provider's website
005	(Issuer initiated) EAA Provider returns an HTML page to the browser containing a Credential Offer with the following payload: - the Credential Issuer URL - an identifier to the offered credential - an optional `issuer_state parameter to bind this issuance to a pre-existing session
006	(Issuer initiated) The user clicks on the link, the Wallet launches, and they unlock the wallet
007	The Wallet fetches the Credential Issuer's metadata from the ./well-known files of the Credential Issuer URL
008	The EAA Provider (from here on named Issuer in his OpenID4VCI role) returns the Credential Issuer Metadata; containing: - technical information about the Issuer - translations and display data for the offered credentials
009	The Wallet verifies the signed metadata provided by the Credential Issuer by checking the signature (should be signed with valid access certificate) & existence and validity of the embedded Relying Party Registration Certificate as defined in ETSI TS 119 472-3
010	The Wallet displays information about the EAA Provider and the offered EAA to the user and asks for consent
011	The Wallet requests a fresh nonce for the wallet instance attestation
012	The Issuer generates a fresh nonce linked to the issuance session
013	The Issuer returns the wallet instance attestation´nonce` to the Wallet
014	The Wallet fetches a fresh `wallet instance attestation from the Wallet Provider backend (could also happen in advance)
015	The Wallet generates a proof of possession (PoP) for wallet instance attestation using the nonce fetched in the previous step
016	The Wallet sends a Pushed Authorization Request (PAR) to the Issuer; containing: - the Wallet Provider's client_id - a PKCE code_challenge - the wallet instance attestation and associated proof of possession - a redirect_uri containing an app-link - either scope or an authorization_details parameter requesting the EAA
017	The Issuer verifies the wallet instance attestation and validates the status of the Wallet solution through a trust list
018	The Issuer stores the Authorization Request, generates a request_uri and sends it back to the Wallet
019	The Wallet uses the request_uri to create an Authorization Request and send this to the Authorization endpoint of the Issuer by issuing a HTTP GET request over the system's default browser.
020	The Browser sends the Authorization Request to the Issuer
021	In this authentication phase, the Issuer may exchange any information over the browser to the user, as he got the "screen control". This may be, but is not limited to: - username / password - OpenID4VP credential presentation of PID, other EAA, etc.. - taking a photo - any other mechanism enabled through the browser
022	The Issuer finalizes the authentication phase by responding with an Authorization Response containing: - the auth code - the redirect provided by the wallet in the PAR
023	The browser follows the redirect, re-launching the wallet
024	The wallet provides information about the offered EAA and asks the user for consent
025	The Wallet sends a Token Request to the EAA Provider containing: - the auth code from Authorization Response - the PKCE code_verifier matching the code_challenge from Authorization Request - the wallet instance attestation and Proof of possession - a DPoP proof JWT establishing possession of the client key
026	The Issuer verifies the wallet instance attestation and proof of possession
027	The Issuer matches the code, verifies the PKCE code_verifier to the previously received code_challenge and verifies the wallet instance attestation. It then generates an access token bound to the DPoP key.
028	The Issuer sends a Token Response; containing - DPoP-bound access token - a c_nonce - an authorization_details object, if the authorization_details parameter was used in the Authorization Request instead of a scope
029	(Proof type : jwt) The Wallet generates a key pair for the cryptographic binding of the EAA (device_pub, device_priv) and signs the c_nonce. A jwt is used for proof of possesion containing optional a key attestation.
030	(Proof type: attestation) The Wallet generates a jwt reperesenting a key attestion without using a proof of possession of the cryptographic key material that is being attested.
031	The Wallet may request an encrypted credential response. In order to do so, it generates a new ephemeral keypair (cre_eph_pub, cre_eph_priv).
032	The Wallet creates the credential_response_encryption JSON object containing the following information: - a jwk containing the cre_eph_pub - the JWE alg parameter - the JWE enc parameter
033	(Proof type : jwt) The Wallet sends the Credential Request to the Issuer; containing - the DPoP-bound access token - the credential information either through credential_identifier or credential_configuration_ids - the proof of cryptographic binding key device_pub signed c_nonce - and the credential_response_encryption object
034	(Proof type: attestation) The Wallet sends the Credential Request to the Issuer; containing - the DPoP-bound access token - the credential information either through credential_identifier or credential_configuration_ids - the proof of cryptographic binding key device_pub signed c_nonce - and the credential_response_encryption object
035	The Issuer validates the access_token and the proof (signed over the c_nonce)
036	(SD-JWT VC EAA) The Issuer creates the Disclosures from attestation data and signs the SD-JWT VC with ep_priv containing - attestation data and hashed Disclosures as the user claims - device_pub as cnf claim He then appends the Disclosures.
037	(mdoc EAA) The Issuer creates the hashed Releases from attestation data and signs the mdoc with ep_priv containing - attestation data and hashed Releases as issuerAuth - device_pub as deviceKeyInfo
038	In case credential_response_encryption information is present, the Issuer creates an encrypted JWT (JWE) using the values received in the credential_response_encryption object and adds (among others) the EAA credential to the payload.
039	The Issuer sends the Credential Response JWT; containing: - The EAA as credential
040	The Wallet decrypts the Credential Response JWT using the cre_eph_priv and retrieves the credential.
041	In case credential_response_encryption information are not present, the Issuer sends the plain Credential Response; containing: - The EAA as credential.
042	The Wallet stores the EAA and the associated keys.

Remote Issuance Pre-Authorized Code Flow

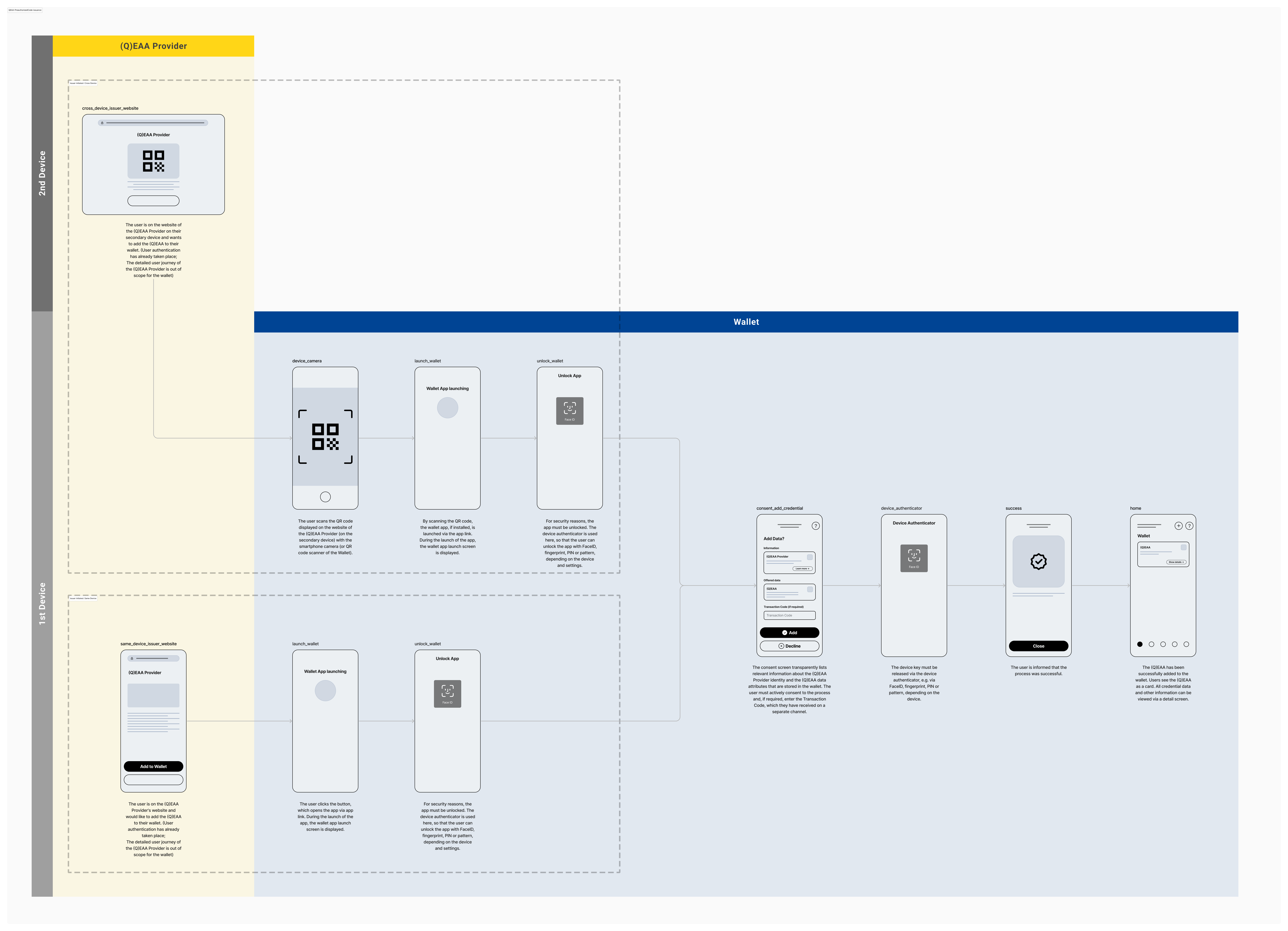

Sequence Diagram

User Journey: EAA Issuance - Pre-Authorized Code

Step-by-Step Description

No	Description
001	The user browses to EAA Provider's website. At this point it is assumed that the user authentication already took place before the OpenID4VCI protocols starts. This may happen through any mechanism, e.g. username/password, providing OTPs, etc..
002	Browser app on the user's device opens the EAA Provider's website
003	EAA Provider returns a HTML page to the browser containing a Credential Offer with the following payload: - the Credential Issuer URL - an identifier to the offered credential - a pre-Authorized Code for authorization, linked to the identified user - the flag tx_code indicating whether the Wallet is expected to provide a Transaction Code in the Token Request. The Transaction Code is sent by the Issuer over a second channel, e.g., via e-mail or SMS, and helps to strengthen security by additional session binding.
004	(Same-Device) The user clicks on the link, the Wallet launches and he unlocks the wallet
005	(Cross-Device) The user opens and unlocks his wallet and scans the QR-Code
006	The Wallet fetches the Credential Issuer's metadata from the ./well-known files of the Credential Issuer URL
007	The EAA Provider (from here on named Issuer in his OpenID4VCI role) returns the Credential Issuer Metadata; containing: - technical information about the Issuer - translations and display data for the offered credentials
008	The Wallet verifies the signed metadata provided by the Credential Issuer by checking the signature (should be signed with valid access certificate) & existence and validity of the embedded Relying Party Registration Certificate as defined in ETSI TS 119 472-3
009	The Wallet shows information about the EAA Provider and the offered EAA to the user and asks for consent
010	The Wallet requests a fresh $nonce$ for the $wallet\_instance\_attestation$
011	The Issuer generates a fresh $nonce$ linked to the issuance session
012	The Issuer returns the $nonce$ for the $wallet\_instance\_attestation$ to the Wallet
013	The Wallet fetches fresh $wallet\_instance\_attestation$ from the Wallet Provider backend
014	The Wallet generates proof of possession $PoP$ for $wallet\_instance\_attestation$ using the $nonce$ fetched in the previous step
015	The Wallet sends a Token Request to the EAA Provider; containing: - the pre-authorized code from Authorization Response - the $wallet\_instance\_attestation$ and Proof of possession $PoP$ - a $DPoP$ proof JWT establishing possession of the client key - the Transaction Code that the user received over a second communication channel from the Issuer, if $\\tx\_code$ was present in the Credential Offer
016	The Issuer verifies the $wallet\_instance\_attestation$ and validates the status of the Wallet solution through a trust list
017	The Issuer matches the pre-authorized code and generates an access token bound to the $DPoP$ key.
018	The Issuer sends a Token Response; containing - $DPoP-bound\ access\ token$ - $c\_nonce$
019	The Wallet generates a key pair for the cryptographic binding of the EAA (device_pub, kb_eph_priv) and signs the c_nonce
020	The Wallet may request an encrypted credential response. In order to do so, it generates a new ephemeral keypair (cre_eph_pub, cre_eph_priv).
021	The Wallet creates the credential_response_encryption JSON object containing the following information: - a jwk containing the cre_eph_pub - the JWE alg parameter - the JWE enc parameter
022	The Wallet sends the Credential Request to the Issuer; containing - the DPoP-bound access token - the credential information either through credential_identifier or credential_configuration_ids - the proof of cryptographic binding key device_pub signed c_nonce - and the credential_response_encryption object
023	The Issuer validates the access_token and the proof
024	(SD-JWT VC EAA) The Issuer creates the Disclosures from attestation data and signs the SD-JWT VC with ep_priv containing - attestation data and hashed Disclosures as the user claims - device_pub as cnf claim He then appends the Disclosures.
025	(mdoc EAA) The Issuer creates the hashed Releases from attestation data and signs the mdoc with ep_priv containing - attestation data and hashed Releases as issuerAuth - device_pub as deviceKeyInfo
026	In case credential_response_encryption information is present, the Issuer creates an encrypted JWT (JWE) with the information and adds (among others) the EAA credential to the payload.
027	The Issuer sends the Credential Response JWT; containing: - The EAA as credential
028	The Wallet decrypts the Credential Response JWT using the cre_eph_priv and retrieves the credential.
029	In case credential_response_encryption information are not present, the Issuer sends the plain Credential Response; containing: - The EAA as credential.
030	The Wallet stores the EAA and the associated keys.

Usability Considerations

Common Considerations

• EAA Provider / Credential catalog should inform users in advance of what is required for the successful issuance of the EAA and what steps follow
• For reasons of transparency and to increase trust, EAA Providers should provide sufficient information (metadata) for the consent screen. This allows users to learn everything relevant e.g. about the provider itself.
• User must confirm the process with the Device Authenticator
• User can have a EAA credential on several end devices at the same time

Authorization Code Flow Considerations

• User needs to authenticate successfully on EAA Provider website
• If the user has to go through more than 2 context switches (issuer initiated flow), it can be confusing, might create unnecessary complexity and additional potential points of failure, and ultimately leads to friction.

Pre-Authorized Code Flow Considerations

• User is already authenticated on EAA Provider website or no authentication is required
• To obtain/copy the transaction code, an additional context switch may be necessary

Privacy Considerations

• Unlinkability has to be achieved with batch issuance

Security Considerations

• EAA Providers may choose to require a wallet instance attestation and a key attestation
• The security guarantees of the Pre-Authorized Code Flow, especially in the Cross-Device Flow, are not intended for higher security levels

Attestation Data and Signature Scope

The term attestation data refers to the attributes and claims contained in the credential that are covered by the issuer's signature. For EAA, the following clarifications apply:

Credential Format	Signed Content	Signature Format
SD-JWT VC	All claims (hashed disclosures) + holder binding key (cnf)	JWS (JSON Web Signature)
ISO mdoc	All attributes in issuerAuth + device key binding (deviceKeyInfo)	COSE_Sign1
