3.1.2 Wallet Dashboard

This flow describes the Wallet Dashboard, the function that gives the user an overview of the credentials stored in the Wallet Instance (WI) and of the transactions carried out with it.

Design Decisions

The dashboard is a local function of the WI: all data displayed is stored within the WI and no backend service of the Wallet Provider is involved, so that the Wallet Provider learns nothing about the user's credentials or transactions.

The dashboard covers the following aspects:

  • Credential Overview: a list of all credentials held by the WI
  • Credential Inspection: a sub-screen for a particular Credential, such as the attributes, the issuer and the validity
    • Credential Data: a detailed sub-screen for the attribute data of a particular Credential
    • Credential Issuer: a detailed sub-screen for the issuer of a particular Credential
  • Transaction Log: a log of all transactions carried out by the WI, including issuance, presentation and deletion of credentials

The PID is differentiated from the EAA's to signify its special role as a high assurance identification means and encourage users to perform the PID issuance.

Credential Overview

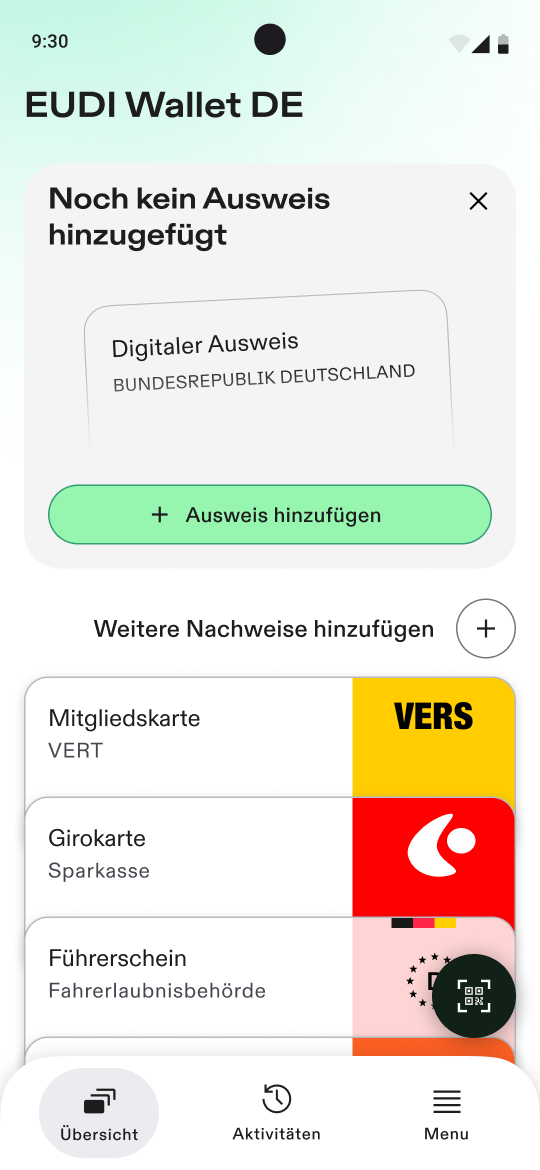

The credential overview screen consists of:

  • the PID Credential card view, showing:
    • the PID's name (credential_metadata.display.name of the PID Provider's pp_meta_data) and the PID Provider's name (name of the PID Provider's pp_registration_cert) on the left
    • the PID's logo and background color (credential_metadata.display.background_color and credential_metadata.display.logo of the PID Provider's pp_meta_data) on the right
    • the PID's background image (credential_metadata.display.background_image of the PID Provider's pp_meta_data) on the bottom
    • if no PID has been issued yet, the card view is replaced by a component to start the PID issuance
  • a link to the credential catalogue, enabling the EAA issuance
  • a list of EAA credential card views, stacked on top of each other, each item showing:
    • the EAA's name (credential_metadata.display.name of the EAA Provider's ep_meta_data) and the EAA Provider's name (name of the EAA Provider's ep_registration_cert) on the left
    • the EAA's logo and background color (credential_metadata.display.background_color and credential_metadata.display.logo of the EAA Provider's ep_meta_data) on the right

Further information on UI restrictions and fallbacks can be found in the credential style guide.

Overview of credentials in the dashboard

Credential Inspection

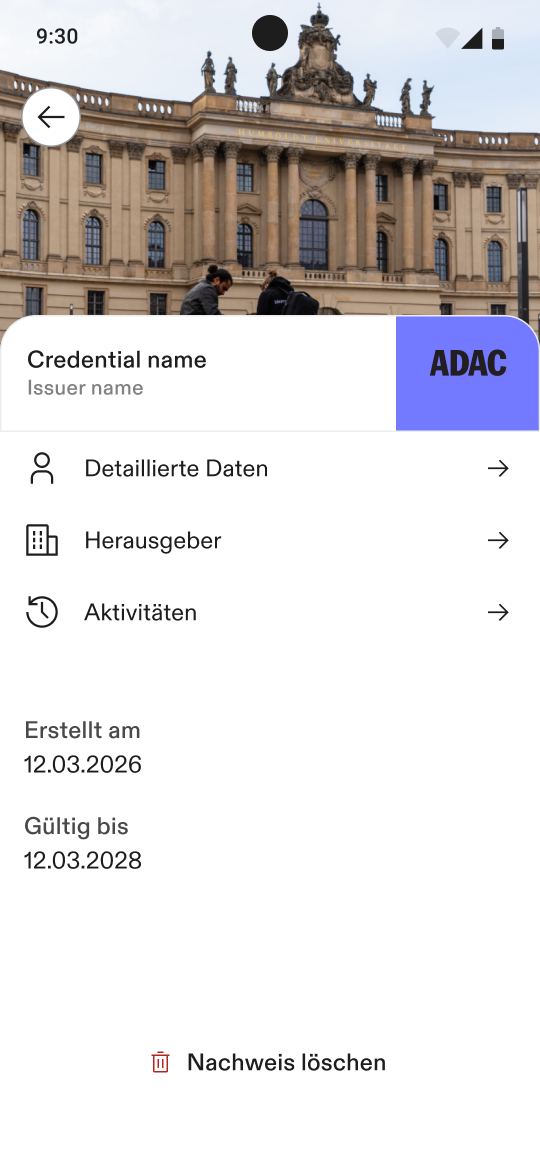

The credential inspection screen shows detailed information on a particular credential (PID or EAA) consisting of:

  • the Credential's background image (credential_metadata.display.background_image of the PID/EAA Provider's pp/ep_meta_data) on the top
  • the Credential's name (credential_metadata.display.name of the PID/EAA Provider's pp/ep_meta_data) and the PID/EAA Provider's name (name of the PID/EAA Provider's pp/ep_registration_cert) on the left
  • the Credential's logo and background color (credential_metadata.display.background_color and credential_metadata.display.logo of the PID/EAA Provider's pp/ep_meta_data) on the right
  • a button("Detaillierte Daten") to the screen showing all PID/EAA attributes
  • a button("Herausgeber") to the screen showing detailed information on the PID/EAA Provider identity
  • a button("Aktivitäten") to the transaction log for this particular Credential
  • the optional issuance and expiration date of the Credential
    • if no batch issuance is used, this refers to the Credential format specific values (iat and exp for SD-JWT VC, validityInfo.signed and validityInfo.validUntil for mdoc)
    • if batch issuance is used, this refers to the issuance and expiration date of the refresh token (timestamp of initial issuance and authorization_expires_in of the Token Response containing the refresh_token)
  • a button("Nachweis löschen") to delete the Credential, starting the PID deletion or EAA deletion

Further information on UI restrictions and fallbacks can be found in the credential style guide.

Overview for a particular credential in the dashboard

Credential Data

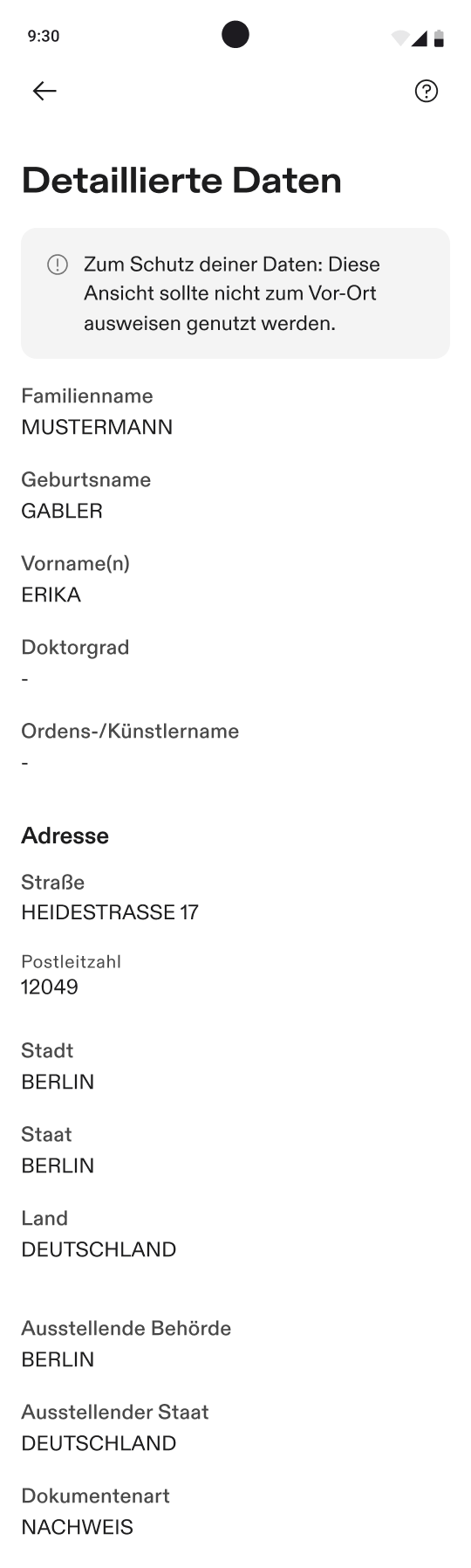

The credential data inspection screen shows detailed information on the contained attributes of a particular credential (PID or EAA).

The list of attributes is created by the following rules:

  • contains all data attributes included by the PID/EAA Provider
    • attribute names are translated by matching the WI's language priority list with the list of translations (credential_metadata.claims of the PID/EAA Provider's pp/ep_meta_data), where the claim path addresses the claim within the credential payload for SD-JWT VC and the pair of namespace and data element identifier for mdoc
    • attribute values are taken from the PID (pp_pid_credential) or EAA (ep_eaa_credential)
    • for SD-JWT VC, payload claims are shown according to their hierarchy, nested data structures have sub-headlines (e.g. "Adresse"), if the parent claim has a translation in the metadata
    • for mdoc, all data elements are shown in a single flat list
  • the order of data attributes is derived from the order of translations in the PID/EAA Provider's metadata (credential_metadata.claims of the PID/EAA Provider's pp/ep_meta_data)
  • contains no metadata of the credential format, in particular:
    • no issuer identifier (iss for SD-JWT VC, the issuer certificate chain within issuerAuth for mdoc)
    • no credential type (vct for SD-JWT VC, docType for mdoc)
    • no issuance date (iat for SD-JWT VC, validityInfo.signed for mdoc)
    • no expiration date (exp for SD-JWT VC, validityInfo.validFrom and validityInfo.validUntil for mdoc)
    • no device binding keys (cnf for SD-JWT VC, deviceKeyInfo.deviceKey for mdoc) or other cryptographic data
  • if PID/EAA Providers may explicitly include meta information as ordinary attributes (e.g. issue_date, issuing_authority, issuing_country) they are displayed to the user

The screen shows a hint that discourages the user from using this view to identify themselves in person, as the displayed data is neither authenticated nor protected against manipulation.

Detailed attribute view for a particular credential in the dashboard

Credential Issuer

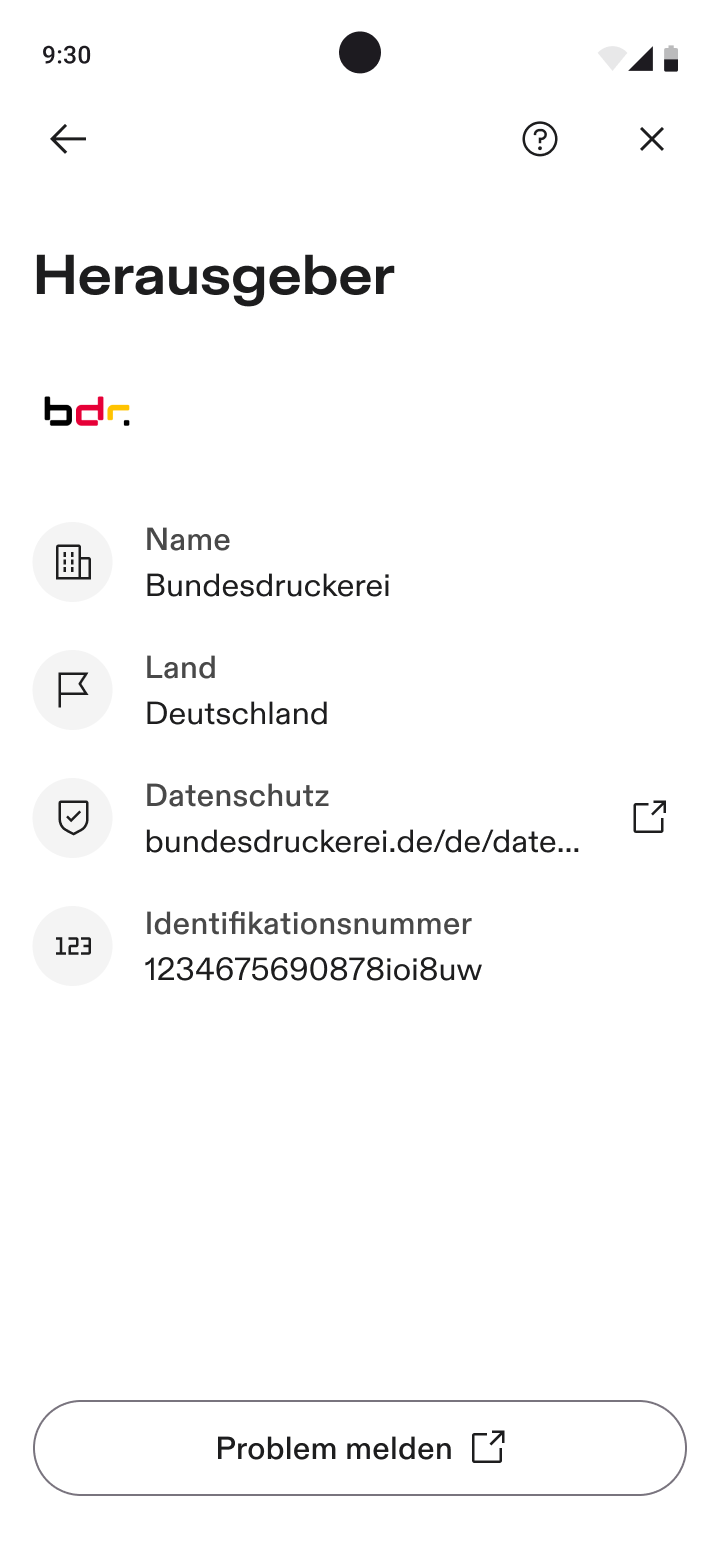

The credential issuer inspection screen shows detailed information on the PID/EAA Provider. The information consists of:

  • the PID/EAA Provider's logo (display.logo of the PID/EAA Provider's pp/ep_meta_data)
  • the PID/EAA Provider's legal name (sub_ln of the pp/ep_registration_cert)
  • the PID/EAA Provider's identifier (sub of the pp/ep_registration_cert)
  • the PID/EAA Provider's country (country of the pp/ep_registration_cert)
  • the PID/EAA Provider's privacy policy (privacy_policy of the pp/ep_registration_cert), forwarding the user to the default system browser
  • the URI for support of the PID/EAA Provider, either an email or a website address (support_uri of the pp/ep_registration_cert), forwarding the user either to the default system browser or email application

Detailed view of the issuer of a particular credential in the dashboard

Transaction Log

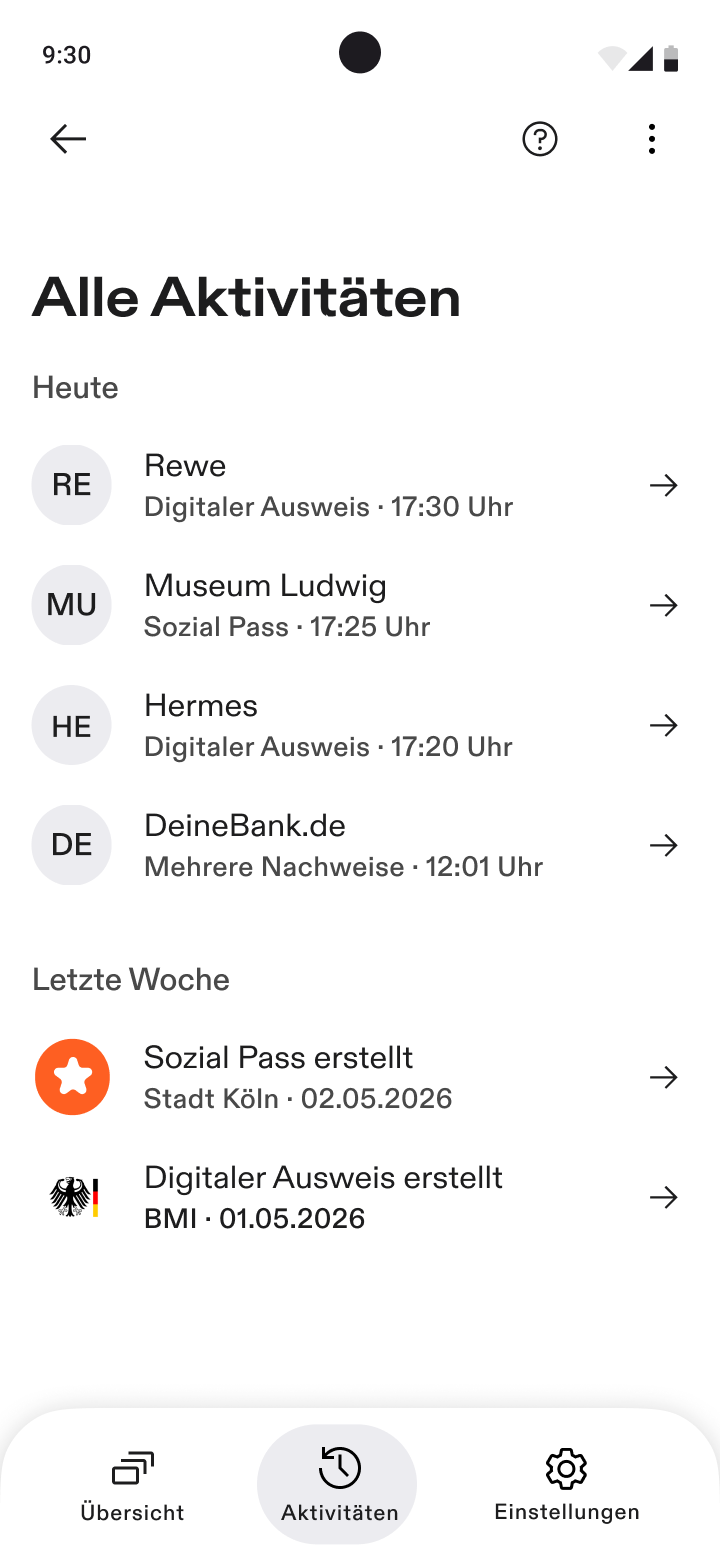

The transaction log shows an overview of all issuance and presentation processes ordered by date, where each item shows:

  • the PID/EAA Provider's name (name of the PID/EAA Provider's pp/ep_registration_cert)
  • the Credential's name (credential_metadata.display.name of the PID/EAA Provider's pp/ep_meta_data) and the timestamp of the transaction recorded by the WI
  • the PID/EAA Provider's logo (display.logo of the PID/EAA Provider's pp/ep_meta_data, the Credential Issuer's own display information rather than the Credential's)

Overview of the transaction log
